Camera Systemen

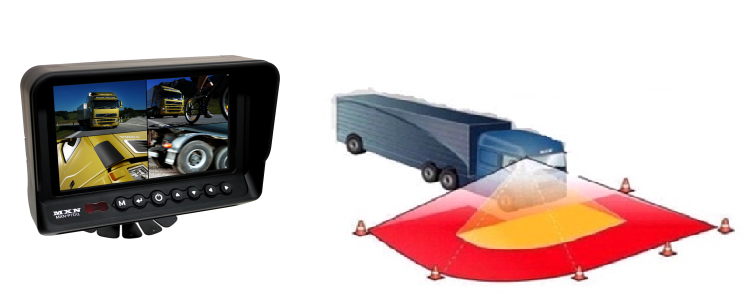

MXN-P7DQ Frontzichtset

• Hoge resolutie 7″ Digital TFT LCD

• Thermostaat gestuurde voorverwarming (onder 0?C), tbv snel opstarten bij extreem koude weersomstandigheden

• Gemotoriseerde shutter-camera ondersteuning

• Camera-verwarming ondersteuning

• Waterbestendig ( IP67)

• 4 camera aansluitingen & 1 AV aansluiting

• Anti reflecterend front

• Automatische dag/nacht helderheidsinstellingen

• Autoscan functie

• Autopower functie

• Geschikt voor PAL of NTSC

• Meertalig OSD (on screen display) menu

• Ingebouwde speaker

• On screen parkeerhulplijnen

• Vrije ingangsspanning (DC 10V- 30V)

• Bracket rails (tevens heavy duty montage mogelijk)

• EMC gekeurd

• CE markering

------------------------------------------------------------------------------------------------------------------------------------------

MXN-7DM    7 inch Monitor

• High Resolution 7" Digital TFT LCD

• Free Input voltage (DC 10V ~ 30V)

• LED Backlight technology (400cd/m2)

• Capacitive Touch Key

• Shutter camera support

• 2 Camera Inputs

• 2 Trigger Inputs

• Tamperproof function

• Anti Reflection Window

• Automatic Brightness Control

• Auto Scan function

------------------------------------------------------------------------------------------------------------------------------------------

MXN22C (achter) 130º Bolcamera

• 1/3” Color CCD high resolution image sensor

• IP69K Waterproof Rating

• Built-in IR LED’s

• Diagonal 130? Viewing

• Normal/Mirror Image switching

• Built-in Microphone

• Multi purpose

   (Frontview, sideview, rearview, surveillance, etc)

• Built-in Automatic Heater (below +10?C)

• Anti-corrosive 3-fold coating

• Temp. -40?C ~ 80?C

• Vibration resistant

------------------------------------------------------------------------------------------------------------------------------------------

MXN22CW (zijkant) 160° Bolcamera

• 1/3” Color CCD high resolution image sensor

• IP69K Waterproof Rating

• Built-in IR LED’s

• Diagonal 160? Viewing

• Normal/Mirror Image switching

• Built-in Microphone

• Multi purpose

   (Frontview, sideview, rearview, surveillance, etc)

• Built-in Automatic Heater (below +10?C)

• Anti-corrosive 3-fold coating

• Temp. -40?C ~ 80?C

• Vibration resistant

------------------------------------------------------------------------------------------------------------------------------------------



MXN56C

• Best picture quality (in combination with Digital LCD monitor)
• High resolution CCD camera (470,000 pixels)
• 1/3” Color CCD high resolution image sensor
• IP69K Waterproof Rating
• Diagonal 130? Viewing
• Automatic Electronic Iris
• Built-in Microphone
• Built-in IR LED’s
• Built-in Automatic Heater (below +10?C)
• Temp. -30?C ~ 80?C
• Vibration resistant
• Anti-corrosive coating

------------------------------------------------------------------------------------------------------------------------------------------

DINW SERIES – 5m, 10m, 15m, 20m en 40m.

• High quality STANDARD cable, to be installed between MXN camera and MXN monitor/LCD. It is important to measure the required cable length(s) before purchasing a camera system. This cable has a waterproof female connector (IP67, 4-pin mini DIN) on the camera side and a normal male connector (4-pin mini DIN) on the monitor/LCD side.

------------------------------------------------------------------------------------------------------------------------------------------

CAMTRAILERSET – Voor 1 of 2 camera’s

This set contains 3 parts:

• CAMSOCKET-M (truck side)

• CURL-E (coil cable)

• CAMSOCKET-F (trailer side)

------------------------------------------------------------------------------------------------------------------------------------------

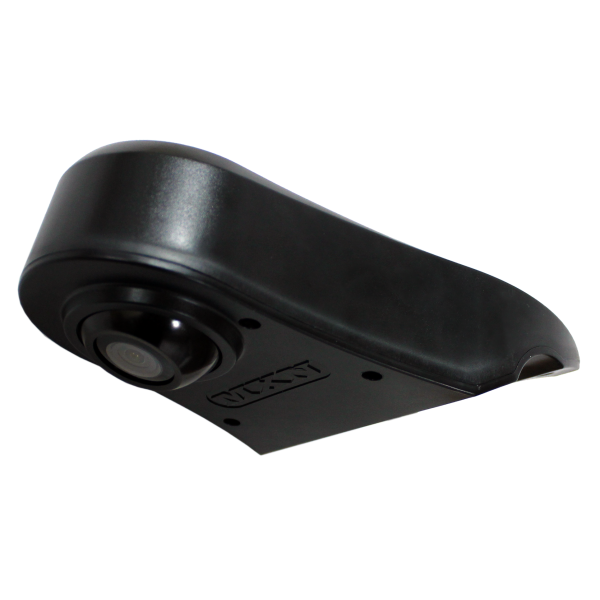

BR-MXN22VAN Van Bracket

• Universal roof mount bracket for MXN22 ball camera series.

• Suitable for small and mid size delivery vans, such as:

   Mercedes Sprinter, Volkwagen Crafter,  Ford Transit,

   Peugeot Boxter, Fiat Ducato, etc..

• Easy installation

• Aerodynamic and fashionable design

• Robust housing

• Adjustable viewing direction



* Camera not included.

------------------------------------------------------------------------------------------------------------------------------------------
